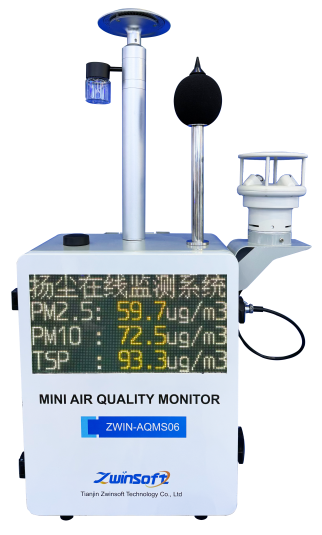

ZWIN-DUST06 Dust Monitoring All-in-One System
Application Fields
Designed for real-time automatic monitoring of:
Unorganized dust emissions: Construction sites, sand/gravel yards, coal stockpiles, straw burning
Ambient air quality: Residential/commercial areas, road traffic, construction zones
Key Features
Integrated Design:
Combines monitoring core + display screen into one unit (no external LED required).
Door-mounted display shows real-time data, reducing costs and complexity.
Real-Time Monitoring:
Laser scattering technology ensures accurate, instantaneous dust concentration measurements.
Technical Specifications
| Parameter |
Specification |
| Monitoring Factors |
PM2.5, PM10, TSP, Noise, Wind Speed/Direction, Temperature, Humidity, Atmospheric Pressure (optional) |
| Detection Principle |
Laser scattering |
| Measurement Range |
0–1000 μg/m³ (expandable to 0–20 mg/m³) |
| Resolution |
0.1 μg/m³ |
