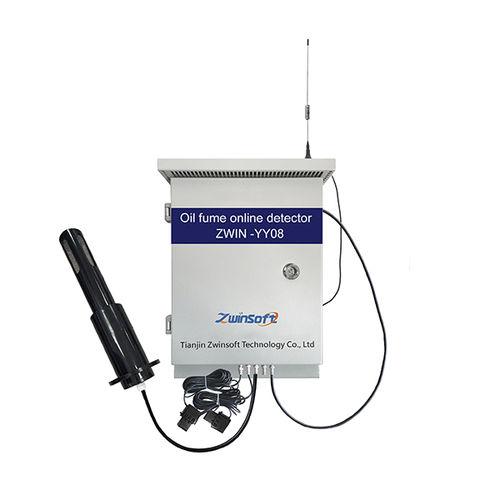

ZWIN-YY08 Oil Fume Online Monitor

In order to meet the special needs of the environmental management of the catering industry, based on many years of data collection experience and in-depth understanding of the lampblack monitoring system, after a large number of experimental tests and project summary, the ZWIN-YY08 lampblack online monitoring instrument was upgraded on the basis of the ZWIN-YY06 lampblack data online collector.

This product is a high-performance monitoring system that integrates fume monitoring, working condition monitoring, data acquisition, data transmission, and data query using technologies such as Internet of Things perception and GPRS wireless communication, so as to unify the fume treatment facility working condition data and fume concentration data, and visually display it on the seven-inch screen at the site or the remote PC platform. Provide real and effective pollution data for the Environmental Protection Bureau, and truly achieve the purpose of online monitoring of oil smoke.

Specification parameters

• Monitoring factors: soot, particulate matter, non-methane total hydrocarbon, temperature and humidity, purifier fan working conditions (scalable voltage monitoring)
• Detection principle: Laser scattering + Semiconductor (MOS)
• Product Model: ZWIN-YY08
• Using a new technology, three parameters of fume concentration, particulate matter and non-methane total hydrocarbon in the fume pipe can be detected.
• Unique air chamber to meet the requirements of three-parameter monitoring;
• Special oil smoke monitoring probe, can effectively filter large diameter particles of smoke, while easy to replace and clean, a host can be equipped with double probes, monitoring purification rate;
• Independently developed main control board, compatible with HJ212 protocol, can be connected to various platforms;
• 7 inch touch screen, support local data viewing, local calibration and revision functions;
• Built-in GPRS, using TCP communication mode, real-time online, data automatically reported.
