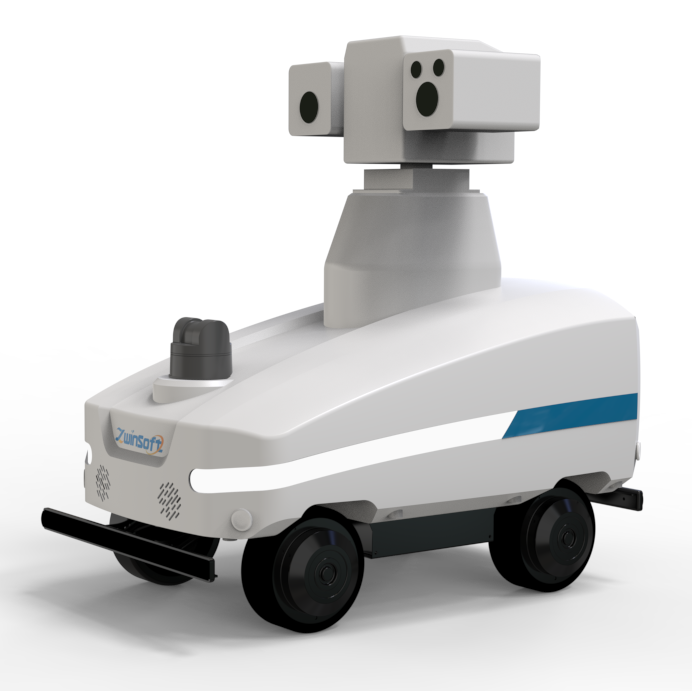

Wheeled Inspection Robot

The wheeled inspection robot system mainly consists of the wheeled inspection robot,software platform, power supply platform, and communication platform. Through the central management platform deployed at the management center, it can manage and control robots to perform inspection tasks online in real time. At the same time, the inspection status and results can be transmitted to the cloud server via a desktop controller and can be sent to on-site management personnel anytime through a mobile client. Inspection reports and alarm information are received in a timely manner. The covered communication network enables real-time data sharing of robot inspection images and results with the integrated management department. Each robot’s status is monitored and managed remotely.

Application scenarios:

power systems, water and environmental protection, industrial manufacturing, and complex outdoor environments.

Technical Parameters

Basic Design

Dimensions (mm): 640*430*660;

Power and Endurance

Battery Type: High-density lithium battery;

Maximum Speed: 1.2 m/s;

Climbing Ability: 25°;

Environmental Adaptation

Protection Level: IP67;

Operating Temperature: -20℃ to +60℃;

Intelligent Perception

Navigation Method: Laser SLAM + Visual Fusion;

LiDAR: 32 lines, detection range 30 m;

Infrared Thermal Imaging: Resolution 640 ×512;

temperature range: -20℃ to 1500℃;

Gas Detection: Simultaneous monitoring of multiple gases;
