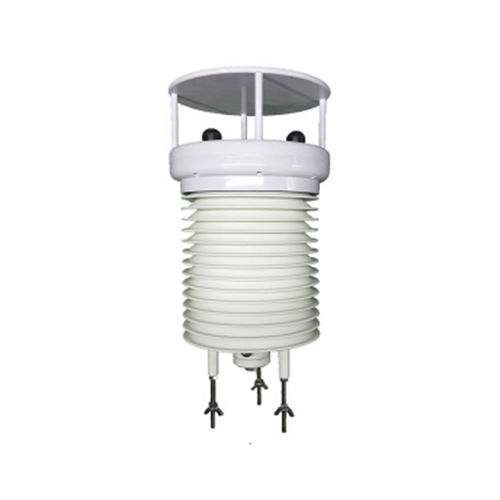

ZWIN-MS06 Ultrasonic 5-element integrated sensor

ZWIN-MS06 Ultrasonic 5-element integrated sensor is a fully digital detection, high-precision sensor. It is integrated with ultrasonic wind speed and direction sensor, high-precision digital temperature sensor, humidity sensor , and air pressure sensor. It can accurately and quickly detect wind speed, wind direction, atmospheric temperature, atmospheric humidity and Atmospheric pressure, built-in signal processing unit can output corresponding signals according to user needs, high-strength structural design can accurately detect in harsh climate environments. The sensor can be widely used in meteorology, ocean, environment, airports, ports, laboratories, industry, agriculture and transportation, etc. field.

Technical parameters

• Wind Speed Wind Direction

Range： 0～60m/s、0～360°

Accuracy：±0.5m/s、±3°

Resolution： 0.01m/s、1°

• Temperature Humidity

Range： -50～100℃、0～100%RH

Accuracy：±0.5℃、±5%RH

Resolution：0.1℃、0.1%RH

• Air pressure

Range：500～1100hPa

Accuracy：±0.3hPa

Resolution：0.1hPa

Power supply：12V
