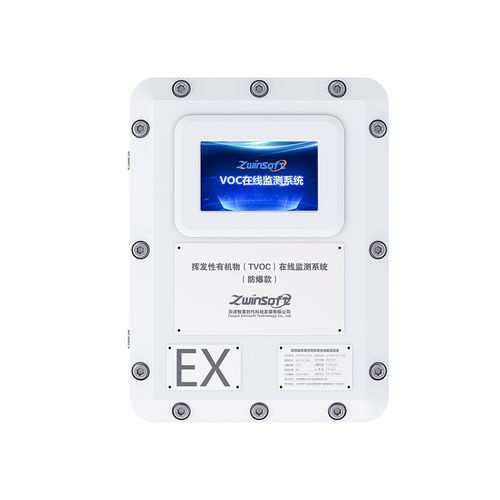

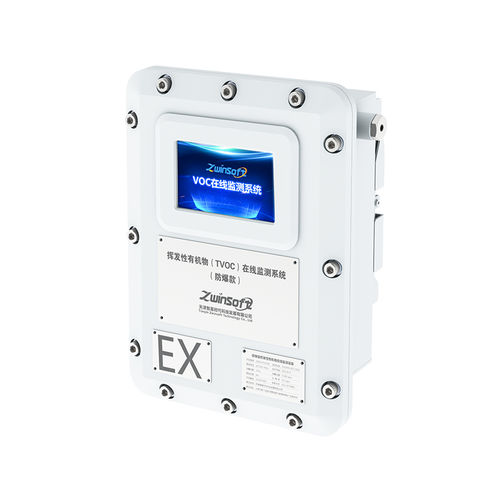

ZWIN-PVOC06 explosion-proof VOC online monitoring system

The explosion-proof volatile organic compound online monitoring system is an advanced monitoring equipment based on PID photoionization technology. It adopts efficient pump sampling to ensure the accuracy and real-time performance of the data. The system consists of two parts: an online monitoring terminal and a sensing probe installed on site. The monitoring terminal has a built-in GPRS wireless communication module, which ensures timely transmission of data in a real-time online and automatic reporting mode. Raw data such as atmospheric temperature, humidity and VOC concentration collected through sensing probes can be comprehensively analyzed by the terminal to provide detailed on-site environmental reports.

The system can detect hundreds of common VOCs including aldehydes, alcohols, halogenated unsaturated hydrocarbons, hydrocarbons, aromatic compounds, etc., covering petrochemical, organic chemical industry, surface coating, packaging and printing, refueling Volatile organic compounds that may be produced by many industries such as stations. At the same time, it is also suitable for harsh environments such as high temperature, high dust, and high oil and gas, such as waste incineration flue gas emission monitoring, VOCs monitoring, biogas online monitoring and other complex scenarios.

Function parameters

• Monitoring factors: including various VOCs such as aromatics, ketones and aldehydes, ammonia and amino compounds, halogenated hydrocarbons, sulfur-containing organic compounds, unsaturated hydrocarbons, saturated hydrocarbons, alcohols, etc., and optional NH3 , H2S and other gas monitoring.
• Sampling method: Pump sampling is used to ensure rapid and accurate capture of VOCs in the environment.
• Protection level: At least IP53, which can effectively prevent dust and water splash, ensuring the stable operation of the equipment in various environments.
• Power supply mode: The working voltage is (220±22) VAC, which meets the conventional power supply requirements.
• Response time: T90<5s, quick response to changing environmental conditions.
• Working temperature: -40~55℃, suitable for working environments with a wide temperature range.

Specification parameters

• Product model: ZWIN-PVOC06, specially designed to be explosion-proof and suitable for high-risk environments.
• Monitoring factor: VOCS, optional NH3, H2S and other gas monitoring.
• Measurement range: 0-20ppm, the range can be adjusted according to actual needs.
• Explosion-proof grade: Exd II BT6 Gb, meeting strict explosion-proof standards.
• Box material: Made of high-carbon steel spray-coating, it has windproof, lightning-proof, rainproof, heat dissipation and heat preservation functions to ensure the durability of the equipment in outdoor environments (customized silk screen printing can be customized to meet individual needs).
• Communication method: Supports 2G/3G/4G/RS485/Modbus and other communication methods to facilitate remote transmission and management of data.
