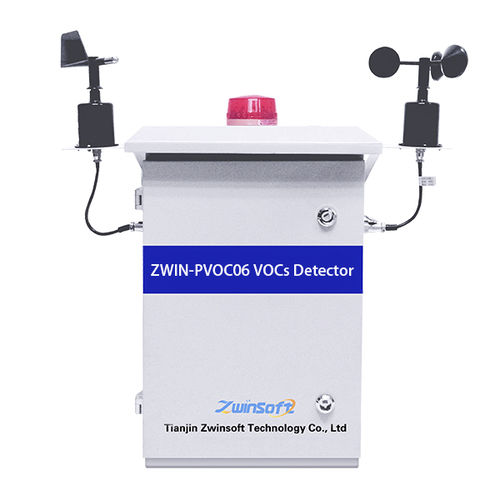

ZWIN-PVOC06 VOCs detector

ZWIN-PVOC06  VOCs  detector is a product suitable for monitoring at factory area and fixed sources. Based on the principle of PlD photoionization, it adopts a pump-suction sampling method. lt can be directly connected to gas outlet pipes . The gas entered inside the instrument is dried and filtered successively through steam traps, dehumidifiers, fow meters and other units. Finally, enter the inteligent. PID organic gas detector, and measures the VOcs concentration in the gas through advanced spectral technology. The system adopts a modular structure, which is easy to combine. The preprocessing function can be integrated and installed according to the actual needs of users. The sensor selected for this product is a highly sensitive imported sensor, which has explosion-proof certificate.

Parameter

• Target gas: VOCs volatile organic gas
• Detecting principle: PiD photoion principle
• Measuring range: 0-20/200/2000/10000ppm (optional)
• Repeatability: ≤ 3%
• Indication error: ≤ +6%FS
• Zero drift: ≤ +1%FS/4h, range drift ≤ +5%FS/4h
• Explosion-proof certification ExdlB T6Gb

Features

• Photoionization monitoring (PiD) detection principle, buit-in pump sampling, accurate and reliable measurement results;
• With automatic zero calibration, automatic cleaning function;
• Human-computer interaction requirements: LcD display is adopted, which can intuitively and dynamicaly display various monitoringdata and instrument working status, provide full English menu and friendly human-computer dialogue interface; , iP address, time, etc.
• Hardware interface: modular design, aviation plug connection, independent operation of each component, high system reliability,
• Support hot-swappable SD card update system, can store monitoring data locally for more than two years and view historical data locally,
• it has the function of external facility switch quantity and analog signal access, and has the function of automatic alarm when data starts,
• Communication interface: support 4G, RS485, INTERNET, wireless WlFl;
• PlD module Appearance patent.
