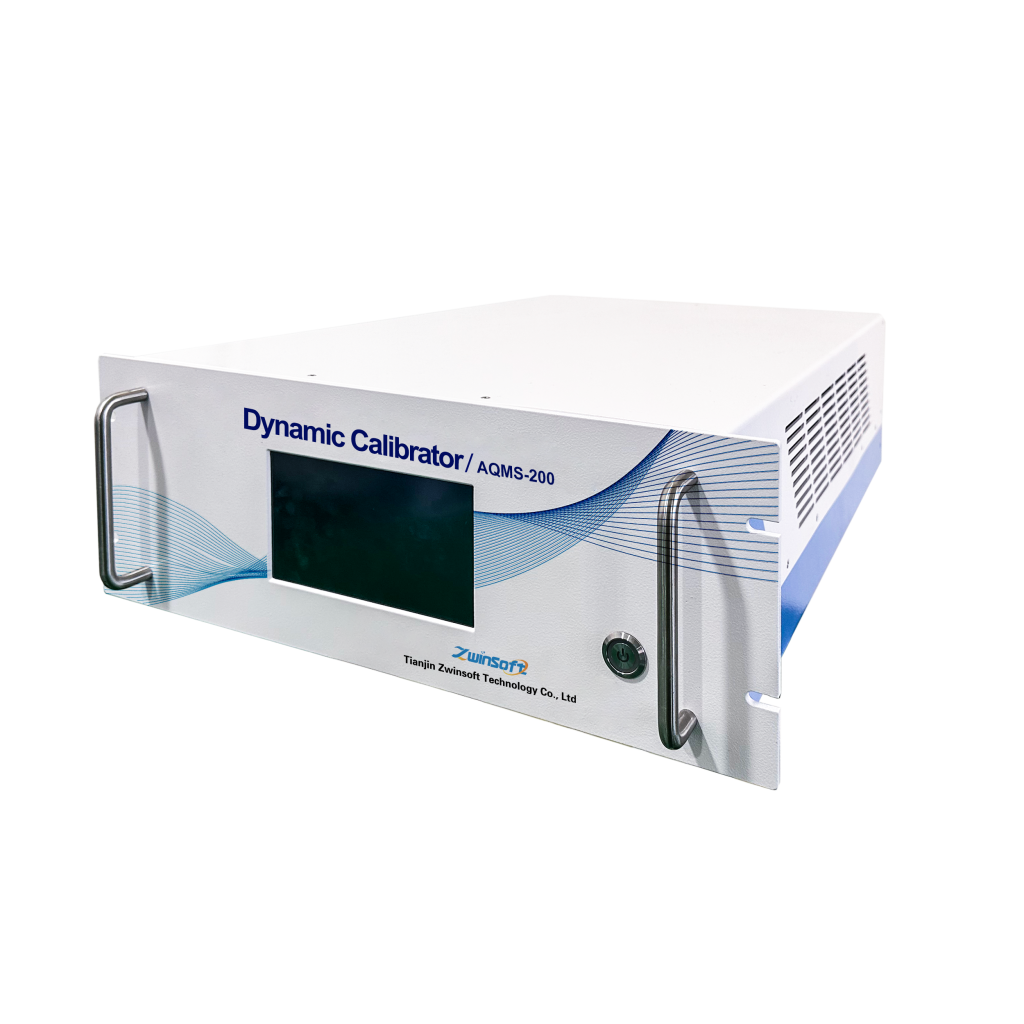

ZWIN-AQMS200 Dynamic calibrator

ZWIN-AQMS200 Dynamic calibrator

Overview

Multi-Gas calibrator is a high-precision gas analyzer calibrator for atmospheric online monitoring and industrial control on-site online analysis. It is a precision gas calibration instrument based on microprocessor control and is mainly used in ambient air., Quality continuous automatic online monitoring system analyzer calibration, can also be used for laboratory and gas analyzer production quality control.

Features

1.High precision mass flow controller;

Using two high-precision mass flow controllers, the gas distribution flow accuracy is high;

Large dilution ratio, fast response;

2.Quartz gas mixing chamber;

3.Multiple calibration gas ports;

4.Large-capacity memory, automatic storage of historical data;

5.Modular design, good scalability, easy maintenance;

6.Optional ozone generator and ozone photometer are available.

Introduction

The basic unit of the dynamic calibrator is two high-precision mass flow controllers, and modules such as ozone generator, ozone photometer and permeation furnace can also be selected according to user needs, The calibrator uses two high-precision mass flow controllers to match the standard gas, and generates the standard gas of nmol/mol-µmol/mol (ppb~ppm) level by the method of proportional dilution. The instrument can use up to three standard gases at the same time. Road standard gas. A multi-point linearization curve was used to control the ozone generator to ensure repeatability of ozone concentration. An optional photometer accessory enables precise control of the ozone generator during calibration and meteorological titration (GPT). The ozone generator produces ozone standard gas, which can react with NO standard gas internally to generate NO2 gas by gas-phase titration method.
